FM5 RF Meter

$999.99

$999.99

5G EMF meter detector for millimeter waves and wireless radiation.

Order Processing: 1-3 days
Processing time refers to the estimated duration from when you place your order to when your product is dispatched for delivery.
We will accept for return or exchange, products that are in new or unused condition within 30 days of original purchase for full refund or credit. No refunds for shipping costs on international orders.
Summary
Specs
Video
Reviews
FAQ's

The FM5 Path complete is an accurate 200MHz – 10GHz high frequency wireless monitor with digital display in micro watts/m2 with audio. This unit has a 24-40 GHz millimeter wave antenna installed in the spare antenna slot.  The antenna in the slot can be changed out later for future upgrades and different ranges of mmWave capability as technology changes with 5G to 6G and beyond.

This antenna in this model is compatible with measuring Verizon’s 28 GHZ and 39 GHz ultra wide band as well as AT&T’s 5G plus small cell towers.  On your mobile phone it shows up as “5Guw” in the top corner.  If not detected then the frequency you are trying to measure is not a millimeter wave but instead a mid band frequency used by the wireless carrier that falls into their 5G high speed designation for Verizon’s Ultra Wide band or AT&Ts 5G plus.

For future antenna upgrades and purchases this meter can be sent back to the manufacturer to be updated.

  • Second antenna slot upgradeable for future mm wave technology
  • Quick response time measurements taken thousands of times per second
  • Peak and maximum signal strength shown on LED screen
  • Directional antenna enables highly accurate HF screening
  • Detects cell towers, 5G cell phones, cordless phones, smart meters, Wifi, IOT etc.
  • Audio speakers allow signal identity and direction tracing
  • 2 year back to base warranty
  • Low frequency module frequency range 200MHz to 10 Ghz
  • Low freq. sensitivity 1uW/m2 to >100k uW/m2
  • High frequency range 24 GHz to 40 Ghz
  • High frequency sensitivity 30uW/m2 to >100k uW/m2
  • Audio range 40Hz to 16kHz
  • Power draw approx. 50mA on low freq. module
  • Approx. 200mA on high freq. module
  • Power source: 9V battery, battery life is dependent on battery quality but more so which module you use; the mm wave module is 400% more battery hungry than the low frequency module

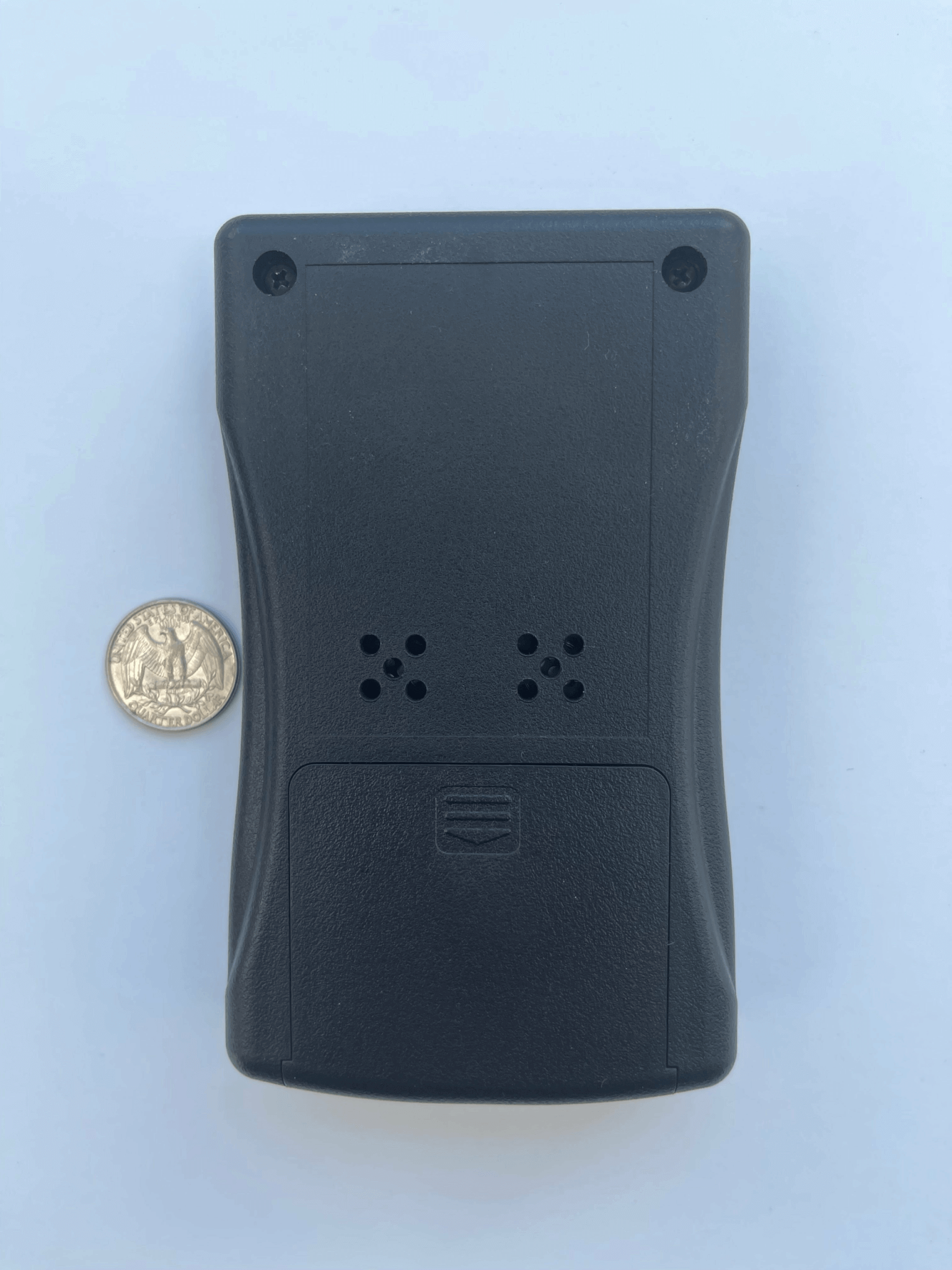

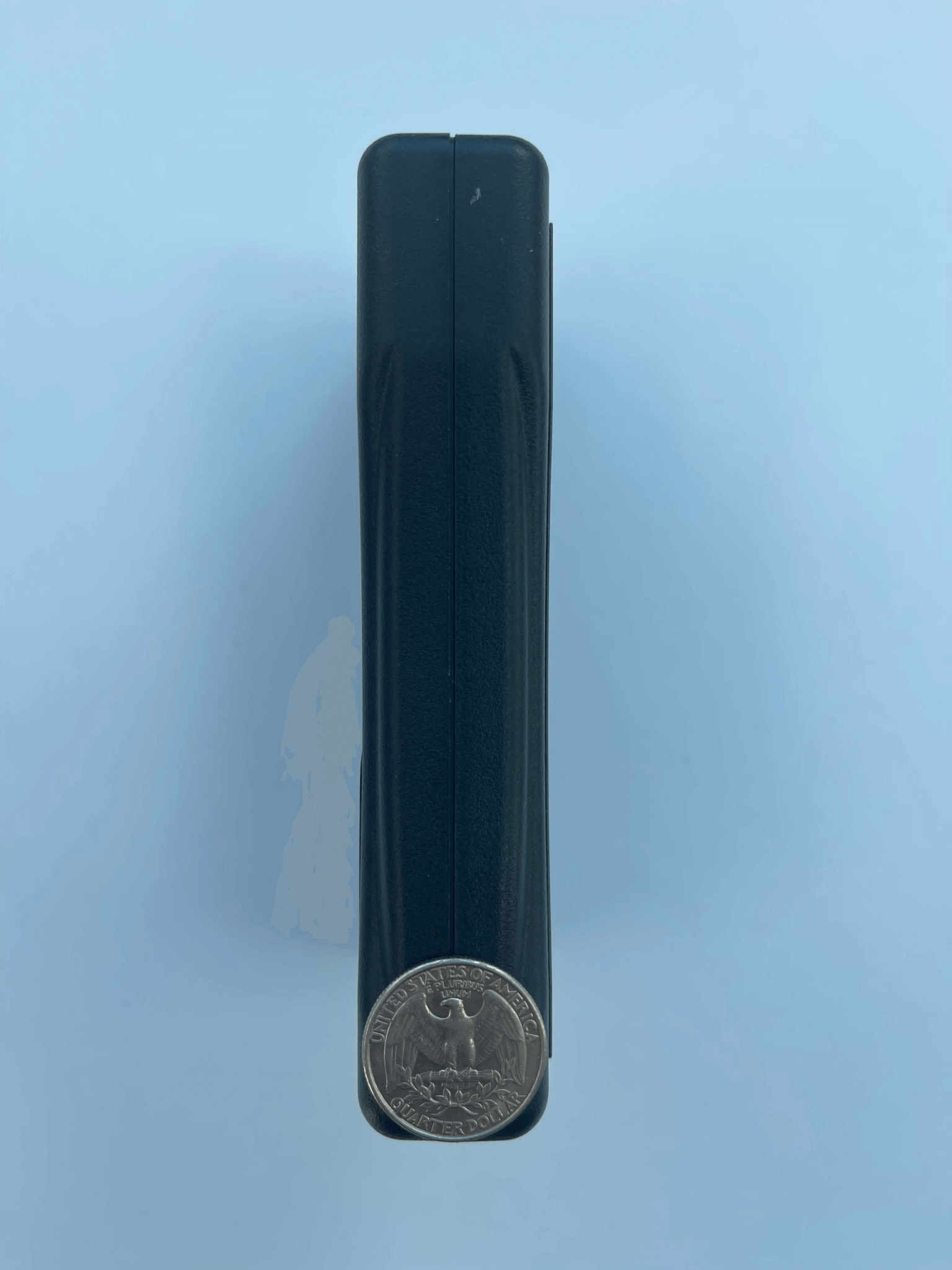

  • Size (mm): 139.53 x 82.21 x 26.69 (L x W x D)
  • Internal loudspeaker with volume control



Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

What can I test?

  • Verizon’s Ultra Wide band 28 GHz antennas and 5G phones
  • T-Mobile 28 GHz is part of their Ultra Capacity 2.5 GHz network
  • Starlink ground satellites operate at 26-30 GHz
  • Motion sensors on commercial doors
  • mmWave meter whole body scanners at airports
  • All 2G, 3G, 4G and 5G frequencies below 10GHz from towers and phones
  • Television broadcasting signals
  • All FM radio (40MHz – 120MHz resonates most with the human body)
  • RF smart meters
  • WiFi routers at 2.4 GHz and 5.8 GHz
  • Any device that emits wireless radiation in the home

How long does shipping take?

Most orders are shipped within 2-3 business days when the product is in stock.  10-12 business days when not in stock.

International orders can take up to 2-5 weeks depending on the location.

Are there any additional fees I should be aware of?

For international orders, you may be required to pay customs/duties fees to receive your package based on the laws in your country.

What is the refund policy for this meter?

This meter is only returnable if defective. The FM5 meter is covered by a 2-year manufacturer warranty.

We have worked directly with the manufacturer to do a second quality assurance test to be sure the meter is in working order before sending out.
